USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out
Large 8 inch TFT-LCD display with 800 * 480 resolution
Packaging & Delivery
3 ~ 7 working days
SDS2000X Series Super Phosphor Oscilloscopes
Product Overview SIGLENT’s SDS2000X Series Super Phosphor Oscilloscopes are available in bandwidths of 70 MHz, 100 MHz, 200 MHz and 300 MHz, maximum sample rate of 2 GSa/s, and come with a maximum record length of 140 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design. The SDS2000X series employs a new generation of SPO technology. It has an innovative digital trigger system with high sensitivity and low jitter, and a maximum waveform capture rate of 140,000 wfm/s (normal mode), up to 500,000 wfm/s (sequence mode). It also employs the common 256-level intensity grading display function but also a color temperature display mode. The trigger system supports multiple powerful triggering modes including serial bus triggering, History waveform recording and sequence acquisition allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a built-in 25 MHz arbitrary waveform generator, 16 digital channels (MSO), as well as serial decoding are also features of the SDS2000X.
70 MHz, 100 MHz, 200 MHz, 300 MHz models.
Real-time sampling rate up to 2 GSa/s.
New generation of SPO technology. • Waveform capture rate up to 140,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode). • Supports 256-level intensity grading and color temperature display. • Record length up to 140 Mpts. • Digital trigger system.
Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
Serial bus triggering and decoder, supports protocols IIC, SPI, UART, RS232, CAN and LIN (Optional).
Low background noise, supports 1 mV/div to 10 V/div voltage scales.
10 types of one-button shortcuts, including Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweeps, Zoom and Print.
Segmented acquisition (Sequence) mode divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user. The resulting acquisition has a very small dead time segment.
History waveform record (History) function, the maximumr ecorded waveform length is 80,000 frames.
Automatic measurement function on 37 parameters, supports statistics, Gating measurements, Math measurements, History measurements and Ref measurements.
Math function (FFT, addition, subtraction, multiplication, division, integration, differential, square root).
High Speed hardware based Pass/ Fail function.
16 Digital channels (MSO option), Maximum waveform capture rate up to 500 MSa/s, Record length up to 140 Mpt/CH.
Large 8 inch TFT-LCD display with 800 * 480 resolution.

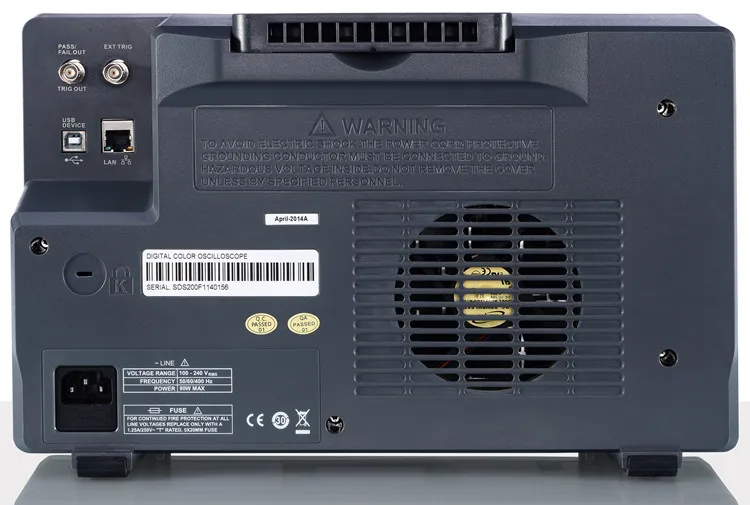

Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass/Fail, Trigger Out, GPIB (optional).
Supports SCPI remote control commands.
Supports Multi-language display and embedded online Help.
Functions & Characteristics
8 Inch TFT-LCD Display and 10 One-button Menus
8-inch TFT-LCD display with 800 * 480 resolution Most commonly used functions are accessible using 10 different one-button operation keys: Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweeps, Zoom and Print
Supports auto detection of 10X probe with read-out port (200 MHz and 300 MHz versions only)
Waveform Capture Rate up to 500,000 wfm/s
With a waveform capture rate of up to 500,000 wfm/s (sequence mode), the oscilloscope can easily capture the unusual or small probability events.
Record Length of up to 140 Mpts
Using hardware-based Zoom technique and a record length of up to 140 Mpts, users are able to use a higher sampling rate to capture more of the signal, and then quickly zoom in to focus on the area of interest.
256-level Intensity Grading and Color Temperature Display
SPO display technology is the result of high refresh rate and multi-frame superimposition. In the unit of time, the higher the probability of a pixel waveform appears, the brighter the pixel.
The degree of warmness and coolness suggests the probability of the waveform’s appearance. The warmer the color, the higher the probability.
Variety of Trigger Functions
Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, IIC, SPI, UART/RS232, LIN and CAN.

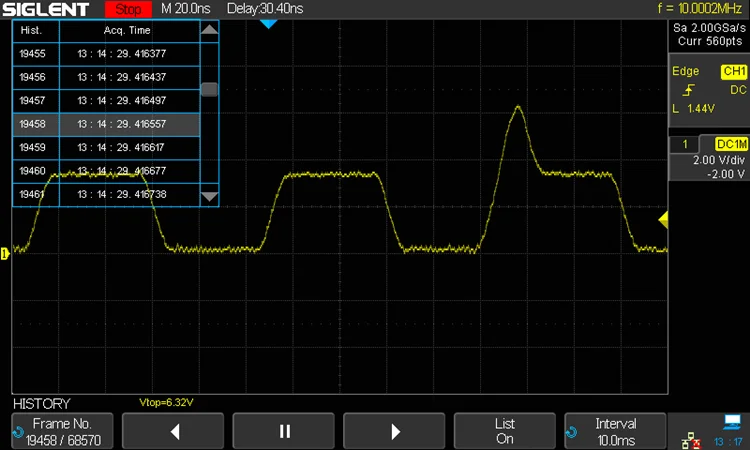

History function can record up to 80,000 frames of waveforms. The recording is executed automatically, so that the customer can play back the history waveforms at any time to observe unusual events, and locate the source quickly through the cursors or measurements. Located on the keyboard Panel, this function is easily accessible.
Segmented memory collection will store the waveform into multiple (up to 80,000) memory segments and each segment will store a triggered waveform, as well the dead time information. The dead time between segments can be as small as 2μs. All the segments can be played back using History function.
Comprehensive Statistical Functions
Parametric statistical functions to display 5 parameters for any set of measurements: current, mean, minimum value, maximum value, and standard deviation. The measurement count is also displayed. The maximum number of measurements that can be run and simultaneously analyzed statistically is five. Supports Gating measurements, Math measurement, History measurement and Ref measurement.
Eres mode can improve the SNR effectively, without the dependence on the periodicity of signal and stable triggering.
Hardware-BasedHigh Speed Pass/Fail Function
Hardware-based Pass/Fail function performs up to 140,000 Pass / Fail decisions each second. With easy-to-generate user-defined test templates, the SDS2000X compares the current measured trace to the template mask trace, making it suitable for long-term signal monitoring or automated testing.
Serial Bus Decoding Function (Optional)
Displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in table form.
